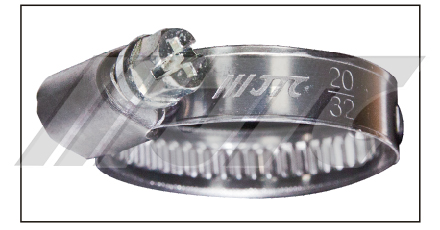

JTC-ZN12焊接型德式管束

JTC-ZN12焊接型德式管束

  • Material: Band and hosing made from ANS#410 stainless steel. Worm screw made by S45C.

  • Special patent structure of this element takes shape with mechanical type,The element with high torsion (60 kg / cm2 of 9W, 80kg / cmof 12W) and high stability.

  • Special process of the band's brims, no burr, no damage to the hose's surface.



Item

Spec

Band width(mm)

Band thickness(mm)

Packing

Packing

ZN12

8-12

9

0.6

100pcs/box

20box/18.6/20/0.9'

ZN16

10-16

9

0.6

100pcs/box

20box/19.5/21.3/0.9'

ZN20

12-20

9

0.6

100pcs/box

20box/20.4/22/1.1'

ZN22

12-22

9

0.6

100pcs/box

20box/21/22.6/1.1'

ZN25

16-25

9

0.6

100pcs/box

20box/21.4/23.2/1.3'

ZN32

20-32

9

0.6

100pcs/box

10box/13.1/14.6/1.1'

ZN35

23-35

9

0.6

100pcs/box

10box/13.8/15.2/1.1'

ZN40

25-40

9

0.6

100pcs/box

10box/14.2/15.6/1.4'

ZN45

30-45

9

0.6

100pcs/box

10box/15/16.4/1.4'

ZN50

32-50

9

0.6

100pcs/box

10box/15.5/17.5/1.8'

ZN60

40-60

9

0.6

100pcs/box

10box/16.8/19.1/2.2'

ZN70

50-70

9

0.6

100pcs/box

10box/18.1/20.8/2.8'

ZN80

60-80

12

0.7

50pcs/box

10box/13.6/15.9/2.2'

ZN90

70-90

12

0.7

50pcs/box

10box/14.4/17.1/2.8'

ZN100

80-100

12

0.7

50pcs/box

10box/15.5/18.2/2.8'

ZN110

90-110

12

0.7

25pcs/box

10box/8.2/9.8/1.8'

ZN120

100-120

12

0.7

25pcs/box

10box/8.7/10.4/2.2'
